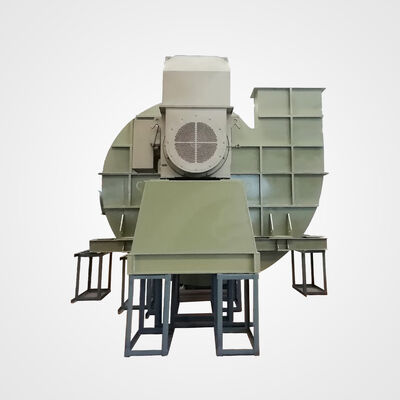

Designed for demanding industrial boiler applications, our heavy-duty large capacity centrifugal fan ensures reliable and efficient air handling in high-temperature, high-pressure environments. Engineered with robust construction and precision-balanced components, it delivers stable performance for combustion air supply, flue gas recirculation, and exhaust ventilation in power plants, chemical facilities, and processing industries.
Key features include:
High volumetric airflow and pressure capabilities for large-scale boiler systems
Heat-resistant materials and reinforced impeller design for extended service life
Energy-efficient operation with optimized aerodynamics to reduce power consumption
Customizable configurations to meet specific boiler specifications and space constraints
Built for continuous heavy-duty operation with minimal maintenance, this fan supports optimal combustion efficiency, emission control, and overall system reliability. It provides a durable, cost-effective solution for industrial boiler ventilation needs, combining performance, durability, and sustainability.
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
| Series no. | 6-04 series | Feature selection | |||||||
| Normal | anti-corrosion | wear-resisting | High temperature | anti-explosion | Remarks | ||||
| Performance | Impeller diameter | 400-3000mm | |||||||
| Rotation speed | ≤4000rpm | ||||||||
| Pressure range | 2170-21000Pa | ||||||||
| Flow range | 563-380000m³/h | ||||||||
| Structure | Blade type | Backward, Straight, Aerofoil type | |||||||
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | ||||||||
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified | |||||||
| Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified | |||||||
| Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified | |||||||
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250ºC | Customer request | |||
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | ||||
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified | ||||||
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified | |||
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Main shaft | High strength carbon steel, Alloy structural steel | Can be specified | |||||||
| Bearing | ZWZ, SKF, FAG, NSK | Can be specified | |||||||
| Bearing housing | Cast iron | ||||||||
| Foundation bolts | GB799-1988 | ||||||||
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | ||||||||
