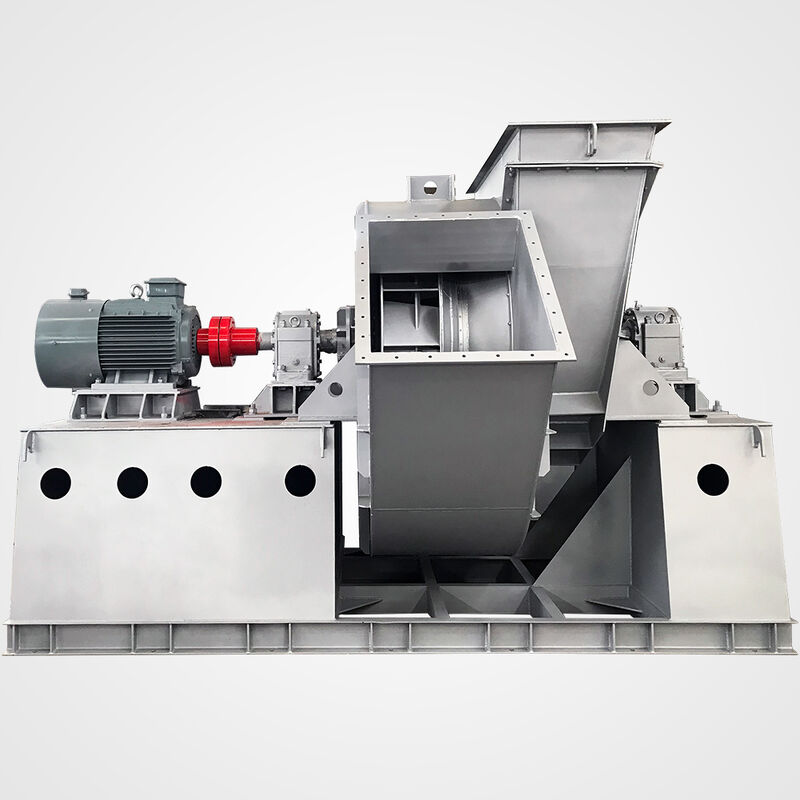

Customized Q345 Energy Efficient Anticorrosion Boiler Blower System
4-73 Boiler Induced Draft Fan
Engineered for demanding industrial boiler applications, our customized boiler blower system combines Q345 high-strength steel construction with advanced energy-efficient technology to deliver exceptional performance and durability. The system features specialized anticorrosion treatment throughout all components, providing reliable resistance to high-temperature oxidation, chemical corrosion, and moisture degradation.
Product Structures
- Impeller - Consists of 12 backward curved airfoil beveling blades welded between arc cone front disc and flat plate back disc. The airfoil blades ensure blowers' high efficiency, low noise and high strength. All impellers pass static and dynamic balance correction and over-speed running test.
- Casing - Welded into a volute shape with common steel plates. Casings for single inlet blowers can be made into three different types.
- Inlet - Integrated into a convergent streamlined structure and fixed onto the suction side of the blower with screws.
- Air damper - Used to adjust the capacity of blower and radially installed before the air inlet. The adjusting range is from 0° (fully open) to 90° (fully closed).
- Driving unit - The main shaft is made of quality steel. Rolling bearings are used for this blower series with different bearing box configurations depending on model size.
Technical Data
| Model No |
G4-73 8A~29.5D |
| Use |
Smoke and dust removal |
| Voltage |
380V/400V/415V/440V/450V/660V/1140V |
| Color |
Blue/Red/White/Grey/Yellow/Customized |
| Application Industries |
Steel Mill/Textile, Chemical, Smelting, Petroleum, and Kiln, and Many Factories |
| Brand Name |
SIMO |
| Power |
18.5~1600KW |
| Rotating Speed |
1450~730rpm |
| Total Pressure |
2104~7218Pa |
| Airflow |
16156~810000M3/h |
| Temperature Resistance |
-40~350 Degrees |
| Material |
SS304,SS316 and Q235 |
| Frequency |
50Hz/60Hz |
| Efficiency(%) |
Over 90% |
| Warranty |
18 Months |
Frequently Asked Questions
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc. If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company's pre-sales service and after-sales service?
Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
Company Introduction
Xinxiang SIMO Blower Co., Ltd., formerly known as Xinxiang Blower Factory, was established in 1955. In 2006, the state-owned enterprise was restructured. The company is a state-level high-tech enterprise, safety production standardization of level3 enterprise, and has won more than 20 provincial and municipal honorary titles. The company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS45001 occupational health and safety management system certification and CE certification.
